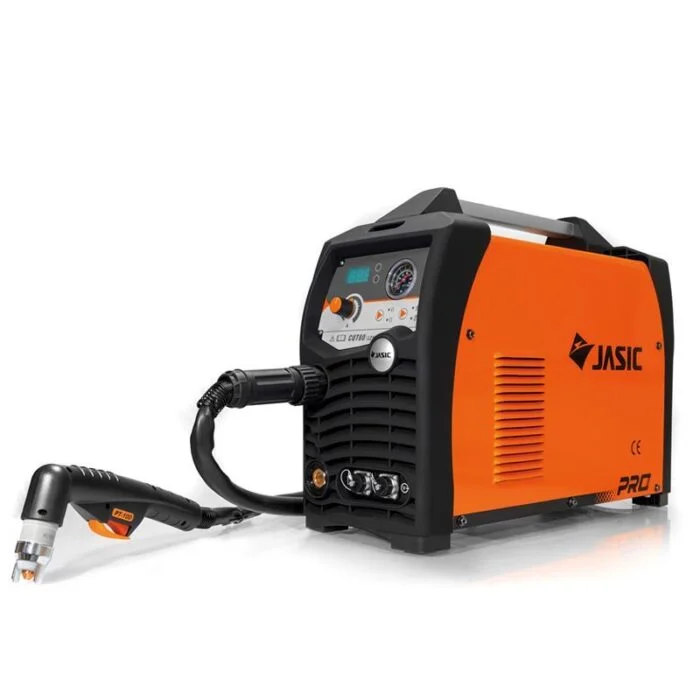

Jasic Plasma Cut 80 400V

Description

The New Jasic Pro Plasma Cut 80 is professional high-end plasma cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma cutter is extremely user-friendly and offers reliable cutting performance.

The plasma cutter provides variable cutting control that allows the operator to produce precise smooth cuts.

Latest IGBT plasma cutter
PWM technology
Lightweight, portable and robust cutter
Digital ammeter
Variable cutting control
25mm Cut on mild steel
PT100 (6m) plasma cutting torch
Cuts steel, stainless, copper, cast iron & aluminium
Cutting speed is increased 1.8 times when compared with oxy-acetylene cutting​
​​Metal mesh cutting mode
Non HF ignition
LED display
IGBT protection system
Air check indicator
Smooth precise cutting
CNC connection
Simple operation
2T/4T cutting operation
Generator friendly plasma cutter

Inverter Package Includes
Plasma cutter power source, Plasma cutting torch (6m), Earth return lead, Operating instructions, 5 year warranty.

TECHNICAL SPECIFICATIONS
Input Voltage AC 400V – 50/60 Hz
Ieff (A) 14
Input Power (kVA) 15.8
Current Range (A) 20 – 80
Duty Cycle @ 40°C 80A @ 40%
Cutting Capacity (Clean) 25 mm
Cutting Capacity (Severance) 30 mm
Efficiency (%) 85
Power Factor 0.9
Protection/Insulation Class IP21S/F
Compressed Air Requirement 200 Ltr/Min @ 5 Bar (73 psi)
Dimensions (LxWxH mm) 555 x 210 x 415
Weight (Kg) 15
